Tripod Ref: Archnshield (7ft. & 10 ft.)

For access in Confined Spaces

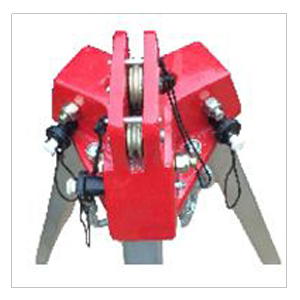

With two mounted pulleys at the head of the Tripod in the prolongation of the main leg for passing a cable
Having two auxiliary eye bolts as anchorage points.
Aluminum Alloy cast head, fully adjustable Aluminium telescopic legs
Steel support-shoes provided with rubber sole to increase friction and impart more stability.
Lifting Load Capacity : 135 Kgs (330 lbs).
Wire Length: 12 m
Strength of anchorage point greater than 10 kN
Every Tripod is provided with inbuilt fixture for attaching our winch SF-TW-023 (can be supplied without this fixture on special request).
Every Tripod is provided with Tripod Kit Bag Ref. No. SF-KB-904

Send Enquiry

Archnshield-800

Archnshield-800A

Length	Spacifiaction	Compliance
7 ft.	Fully adjustable telescopic legs, adjustable height from 1.15m to 2.20m Wheelbase (Footprint):1.5m Diameter Weight:13kg Maximum load capacity: 500kgf	EN 795 CLASS B
10 FT.	Fully adjustable telescopic legs, adjustable height from 1.9m to 2.90m Wheelbase (Footprint): 1.8m Diameter Weight:15kg Maximum load capacity:500kgf	EN 795 CLASS B

With Tripod- 800A

Aluminum Single Pulley
With Single Side Attatchment

Steel Alloy Pully
With Single Side Attachment

Steel Screw Locking Karabiner

Archnshield-801

To be used for raising or lowering of personnel or material into confined spaces.
Equipped with bolting fixture for robust fitting on to the tripod Archnshield-0000.
TLifting Load Capacity : 135 Kgs (330 lbs).
Wire Length: 12 m.
Conforms to EN 1496:2006 Class A.
To be used with a Retractable Fall Arrester when deployed for raising or lowering a person.
